Smart Sensor

< >

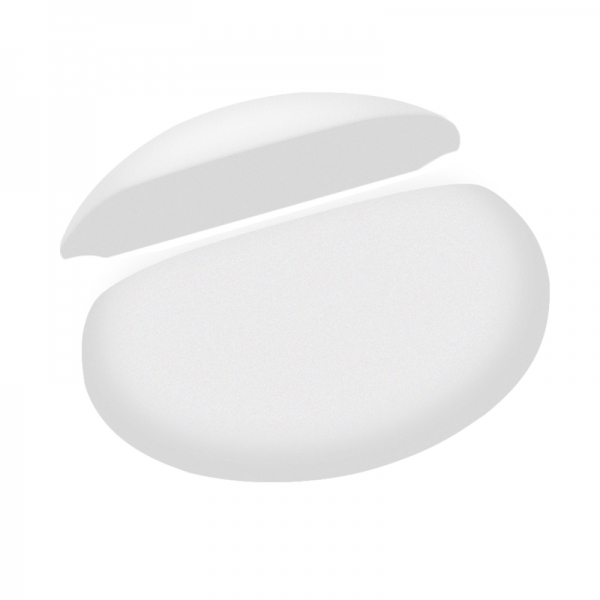

Door Sensor SM-AZ702

SM-AZ702
Battery type: CR2032/3V
Standby current: 10uA
Working temperature: -10~45 degrees Celsius
Working humidity: 20%~85~RH
Wireless frequency: 2.4GHz
Wireless distance: 30 meters indoors without occlusion
Communication protocol: ZigBee 3.0
Network protocol: ZigBee IEEE 802.15.4
Product Dimensions: 58 x 42 x 13.2mm

Model		SM-AZ702
Solution		ZigBee
Chipset		EFR32MG13P732
Protocol		802.15.4 PHY / MAC

Transmission Protocol: ZigBee
Wireless frequency: 2.4GHz
Working voltage: 2.2V-3V
Static current: ≤5uA
Alarm current: ≤30mA
Detecting distance: >20m
Wireless networking distance: ≤100m (in the open area)
Working environment: -10℃~+50℃
Working humidity: Maximum 95%RH
Button Battery CR2032 x 1
Physical Switch: 1 pc
Indicator light: 1 pc
Buzzer: 1 pc
app: iOS/Android
Works with Alexa, Google Assistant and IFTTT
Sizge of body: 58 x 42 x 13.2 mm
Dimension: packaging box: 100 x 28.5 x18.9 mm/pc, 0.04KG/pc .

Packing list

Mother sensor x1

Dauther sensor x1

3M sticker x 2

CR2032 battery x1

Battery insulating sheet x1
