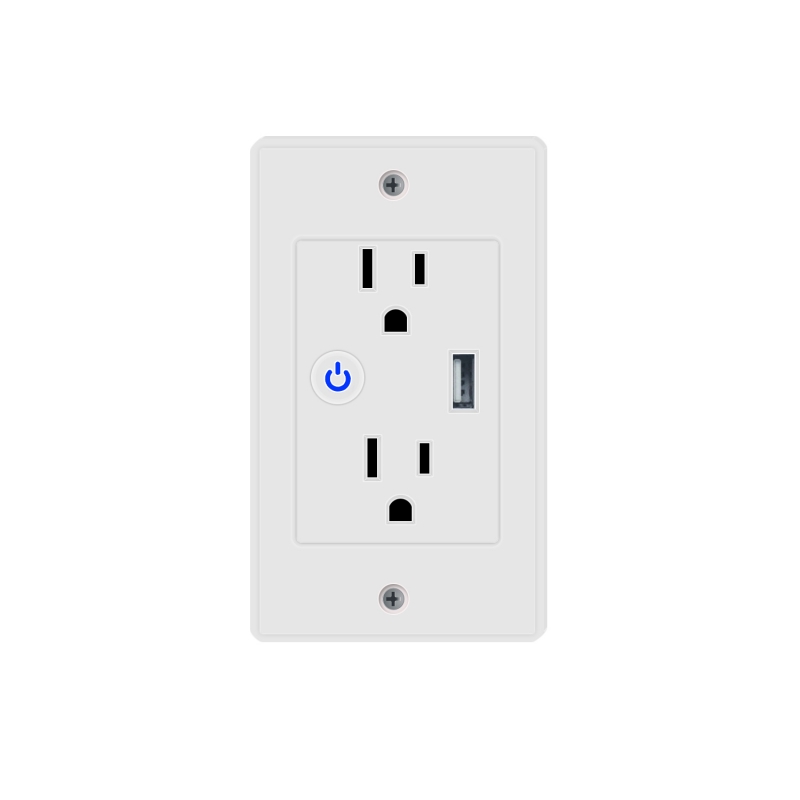

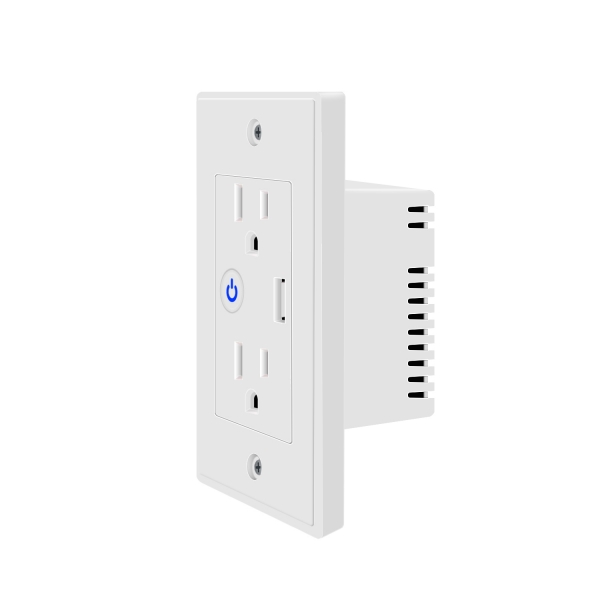

Smart In Wall Outlet

SM-PW801-U1

Wi-Fi    SM-PW801-U1
ZigBee SM-PW801-U1Z
2 x AC120 output
1 x USB charger
Max power: 2000W
Working current: 15A
cETL listed ID: 5009829
Certified to CSA Std. C22.2 No. 308
Working voltage: AC 120V
Material: ABS flame retarding polymer
Plug Standard: US
Power consuming: ≤0.3W
Working temperature: -20 ~ 45℃ (-4 ~ 113℉)
Working Humidity: ≤80%
Radio signal power: 1mW
Radio protocol: Wi-Fi / ZigBee
Radio rate: 30 meter indoor
App: compatible with iOS and Android;
Works with Amazon Alexa and Google Assistant

  • Model SM-PW801-U1 SM-PW801-U1Z
    Solution Wi-Fi ZigBee
    Chipset ESP8266 EFR32MG13P732
    Protocol 802.11b/g 802.15.4 PHY / MAC
    2 x AC120 output
    1 x USB charger
    Max power: 2000W
    Working current: 16A
    cETL listed ID: 5009829
    Certified to CSA Std. C22.2 No. 308
    Working voltage: AC 120V
    Material: ABS flame retarding polymer
    Plug Standard: US
    Power consuming: ≤0.3W
    Working temperature: -20 ~ 45℃ (-4 ~ 113℉)
    Working Humidity: ≤80%
    Radio signal power: 1mW
    Radio protocol: Wi-Fi or ZigBee
    Radio rate: 30 meter indoor
    Radio rate: 50 meter outdoor, depends on building materials and structures.
    App: compatible with iOS and Android;
    Works with Amazon Alexa and Google Assistant
    * Adopt WiFi protocol to secure the success of wireless two way communication
    * Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series WiFi module) to enhance the communication range
    * Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive
    * Overload protection
    * Dimension:  120*70*48.7MM
  • Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
