Curtain Switch

< >

SM-SW101-C

Wi-Fi SM-SW101-C
ZigBee SM-SW101-CZ

Curtain switch 86 x 86 mm

* Power supply: AC100V-240V=10% 50Hz

* Working temperature: 0°C~80°C

* Switch load power: 0-400W

* Standby power consumption: ≤0.5WRelative humidity: 10% to 93% (non-condensing)

* Control：Touch, app, brightness memory function

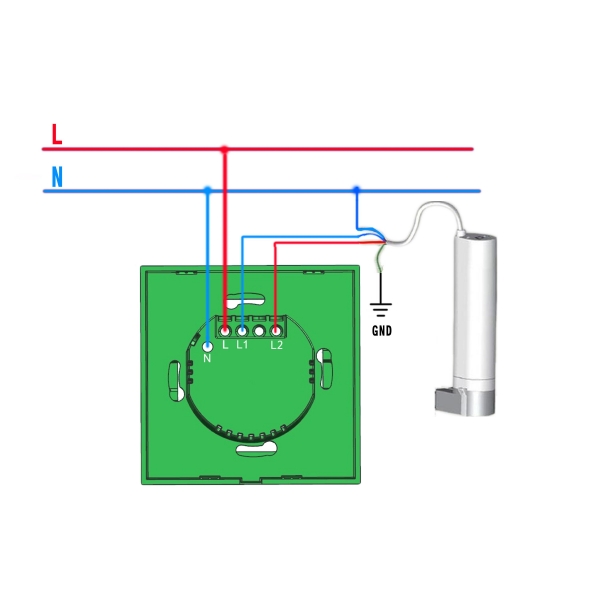

* Connection: N (Neutral), L(Line), L1 Control(open), L2 Control(Off),

GND(No need to connect if there isnt GND in case.)

* Radio signal power: 1mW

*Radio Protocol: Wi-Fi / ZigBee

* Radio rate: indoor 30 meters

* Radio rate: 50 meters outdoors, depending on building materials and structure

* App: iOS / Android

*Works with Alexa, Google Assistant and IFTTT

* Powered by Tuya

Model	SM-SW101-C	SM-SW101-CZ
Protocol	Wi-Fi	ZigBee
Chipset	ESP8266	EFR32MG13P732
Note	No hub	Need hub

Works with Amazon Alexa,Google Assistant,IFTTT
Switch touch is a one way Wi-Fi/ZigBee sensitive control Luxury glass panel wall switch.
It can be paired with IOS/Android app Jinvoo Smart via Wi-Fi/ZigBee,allowing users to remotely turn on/off
the LED and lignts from anywhere at any time.
Its LED back light lets you easily find and turn on the switch at night.
It can be used to control lights or home appliances.
Upgrade your home with this modern,fasionable alternative to traditional light switches.
Power supply: AC100V-240V=10% 50Hz

Working temperature: 0°C~80°C

Switch load power: 0-400W

Standby power consumption: ≤0.5W

Relative humidity: 10% to 93% (non-condensing)

Control：Touch ,app,brightness memory function

Connection: N (Neutral),
L(Line),
L1 Control(open),
L2 Control(Off),

GND(No need to connect if there isn’t GND in case.)

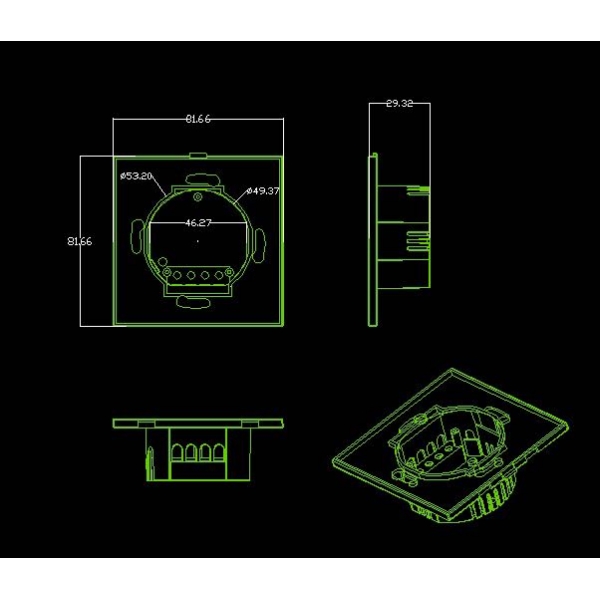

Product Specifications: (120*74*39)mm, (4.7*2.9*1.5)in

Wi-Fi and ZigBee standard: 802.11b/g/n, 2.4GHz

Wi-Fi and ZigBee save mode: WEP, WPA/WPA2

App: iOS/ Android
*Dimensions: 106x102x42 mm /color box,
540x300x475 mm/carton,
120pcs/carton,
25kg/carton;
*Weight: 0.20kg /pc with color box;
